Liaoning Yifang Wisdom Technology Group Co., Ltd. is one of the leading manufacturers and suppliers of edge acquisition control board in China. We are committed to offering high quality customized products for global clients. Please feel free to wholesale the newest edge acquisition control board in stock here from our factory. For quotation, contact us now.

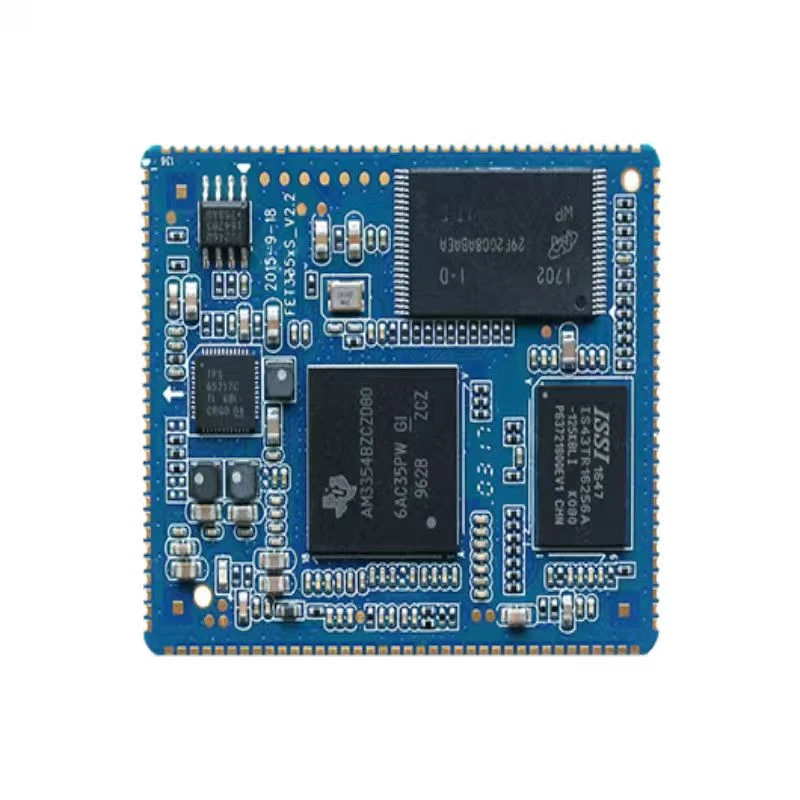

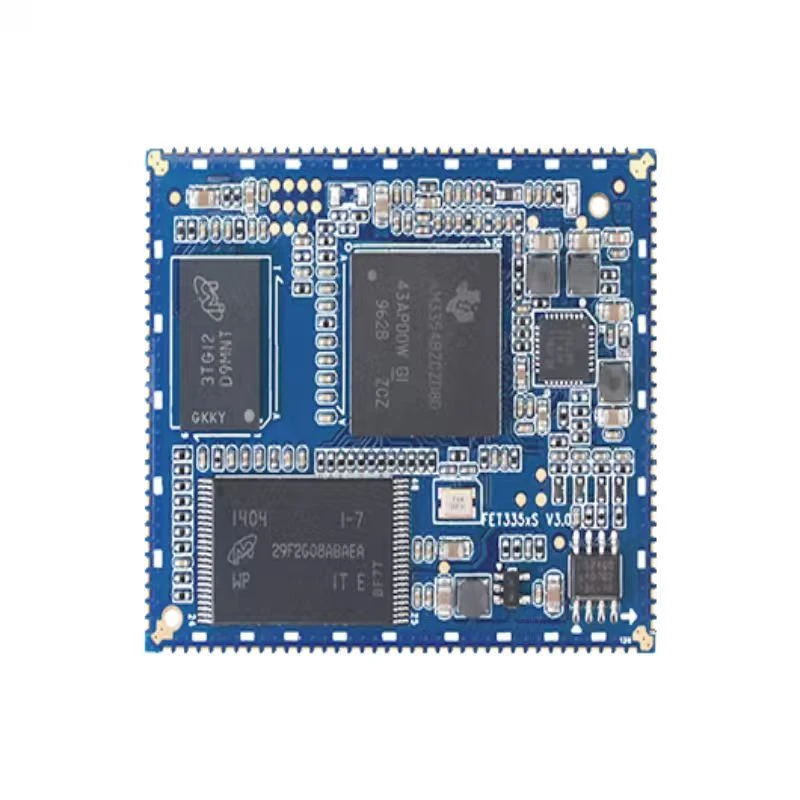

Edge Acquisition Control Board
Basic Information
Achieve reliable field signal collection and consistent equipment control with our industrial Edge Acquisition Control Board. Designed for harsh industrial working conditions, the board integrates independent hardware filtering, industrial-grade anti-interference circuits and wide-temperature resistant components to ensure long-term stable operation on production sites and outdoor industrial environments. For system integrators and equipment manufacturers focusing on industrial automation and IoT upgrading, stable signal acquisition and compatible field control are core operational demands. This modular control board acts as a reliable edge-side processing unit, realizing real-time signal collection, data filtering and automatic logic control. Developers can complete rapid secondary development and equipment embedding to simplify field system construction and reduce repeated hardware matching work.
Features And Optional Customization
We support flexible customized solutions to match differentiated project requirements. Optional services include adjustable signal channel quantity, redefined interface pins, pre-burned industrial protocols and upgraded wide-temperature grades. Custom internal program logic and exclusive technical adaptation are also available for special industrial scenarios. These customizable functions help clients unify equipment communication standards, optimize on-site signal management and avoid compatibility conflicts in multi-device linkage systems, greatly improving overall project integration efficiency.
Technical Specification
| Core Parameters | |
| Signal Type | Multi-channel analog (0-10V, 4-20mA) & digital dry/wet signal input and output |
| Acquisition Accuracy | ±0.2% long-term stable precision |
| Communication Interface | RS232, RS485, CAN bus, RJ45 Ethernet |
| Supported Protocol | Modbus RTU, Modbus TCP mainstream industrial protocols |
| Working Temperature | -40℃ ~ +85℃ wide temperature range |
| Protection Performance | EMC electromagnetic compatibility, anti-surge & anti-interference design |
| Development Support | Complete SDK packages, open source documents and demo programs |
Material & Finishing
- Core Component: Industrial-grade wide-temperature chips, capacitors and resistors
- Circuit Design: Independent sampling circuit + hardware filtering circuit
- Quality Standard: 72-hour continuous aging test & environmental simulation test
Application Area
Industrial IoT data collection, automated mechanical equipment control, factory environmental monitoring, power distribution monitoring, warehouse intelligent monitoring and smart building energy management systems.
Available Design
- Optional multi-channel signal expansion and interface function modification
- Optional protocol preloading and program function customization
- Optional high-grade anti-interference and ultra-low temperature adaptation upgrade
- Exclusive technical docking and secondary development guidance
Similar Product Recommendation
For clients requiring only fixed-point data collection without on-site logic control, we recommend our industrial signal acquisition module series. For projects with high integration and miniaturization requirements, our compact embedded control board series can serve as an ideal alternative for lightweight industrial edge deployment.
Why Choose Us
We are the original factory integrating independent R&D, structural design, SMT processing and finished product testing. All circuit structures are designed according to industrial engineering standards with strictly controlled dimensional and circuit tolerance to ensure precise matching of each functional module. Key circuit and load-bearing parts adopt automated welding and mechanical polishing processes to eliminate circuit burrs and unstable welding points. Every finished board undergoes strict performance calibration, signal accuracy testing and aging screening before delivery, ensuring consistent batch quality and stable long-term operation.
Customer Service
We provide complete technical datasheets, test reports and development supporting materials for all products. Our professional technical team offers one-stop pre-sales solution matching and after-sales technical guidance. Data-driven quality control effectively reduces clients' equipment failure rate and later maintenance costs, supporting stable long-term project operation for global industrial purchasers.
FAQ
Q: What industrial scenarios is this edge control board suitable for?
A: It is specially designed for on-site edge signal acquisition and logic control, perfectly suitable for industrial IoT, automated machinery, factory monitoring and smart energy management scenarios to realize real-time field data collection and automatic equipment linkage control.
Q: Can this board adapt to complex industrial interference environments?
A: Equipped with professional EMC anti-interference design and hardware filtering circuit, it can resist electromagnetic interference from on-site frequency converters and high-power equipment, effectively avoiding signal disorder and data loss.
Q: Is secondary development friendly for new developers?
A: We provide complete open documents, standard SDK and demo cases with standardized pin definitions, greatly lowering development threshold and shortening project iteration cycles.
Q: Can customized modification be realized for special project needs?
A: Yes. We support personalized customization including signal channel adjustment, interface modification, protocol pre-burning and environmental adaptation upgrades to meet differentiated industrial standard and scenario requirements.
